SINGLE PHASE 6000 RPM MODEL SIRENS
ELECTRICALLY OPERATED SIRENS UNIVERSAL MOTOR - 220/250V SINGLE PHASE 6000 RPM MODELS

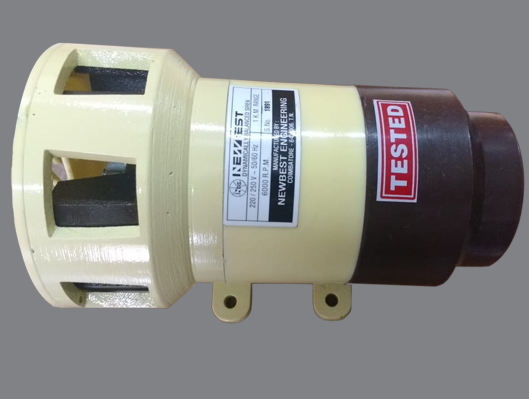

HORIZONTAL SINGLE MOUNTING SINGLE PHASE 220 / 250 V 6000 RPM 50 CYCLES AC
| AUDIBLE RANGE IN KMS | H.P | MODEL |
|---|---|---|
0.50 | 1/20 | SM – 50 |
1.00 | 1/10 | SM – 100 |
1.50 | 1/4 | SM – 150 |
2.00 | 1/4 | SM – 200 |

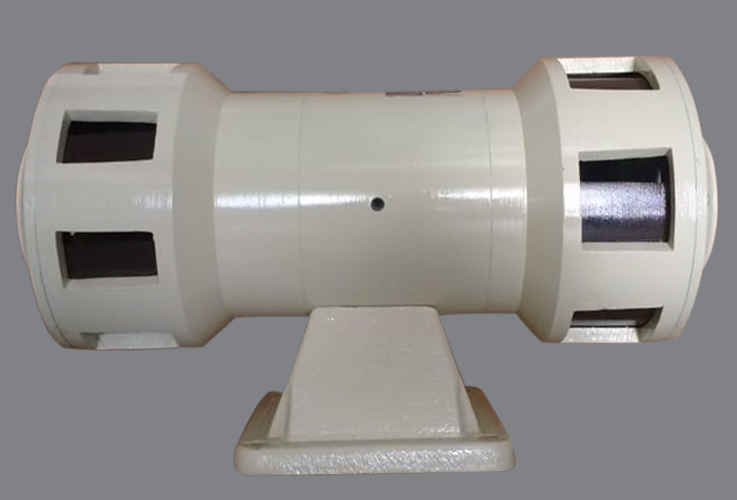

HORIZONTAL DOUBLE MOUNTING SINGLE PHASE 220 / 250 V 6000 RPM 50 CYCLES AC
| AUDIBLE RANGE IN KMS | H.P | MODEL |
|---|---|---|
1.00 | 1/10 | DM – 100 |
1.50 | 1/4 | DM – 150 |
3.00 | 1 | HDM – 300 |

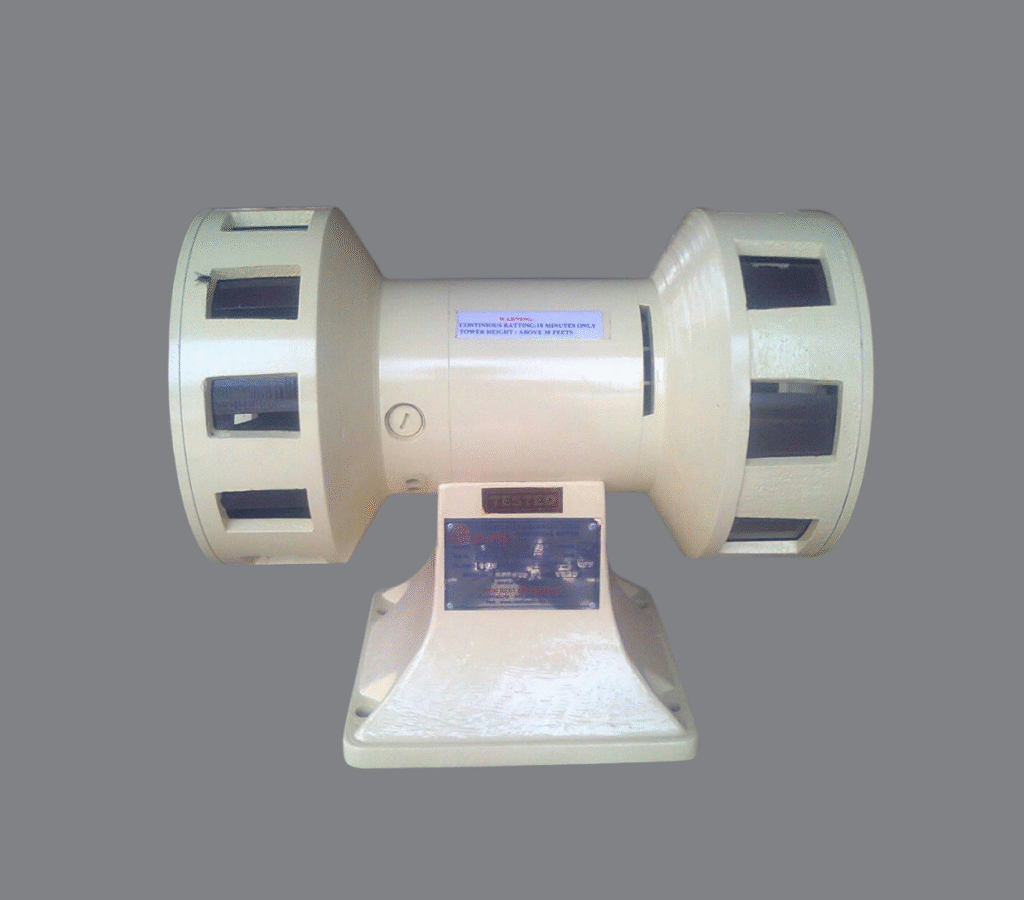

HORIZONTAL DOUBLE MOUNTING SINGLE PHASE 220 / 250 V 6000 RPM 50 CYCLES AC
| AUDIBLE RANGE IN KMS | H.P | MODEL |
|---|---|---|
5.00 | 2 | HDM – 500 |
8.00 | 3 | HDM – 800 |

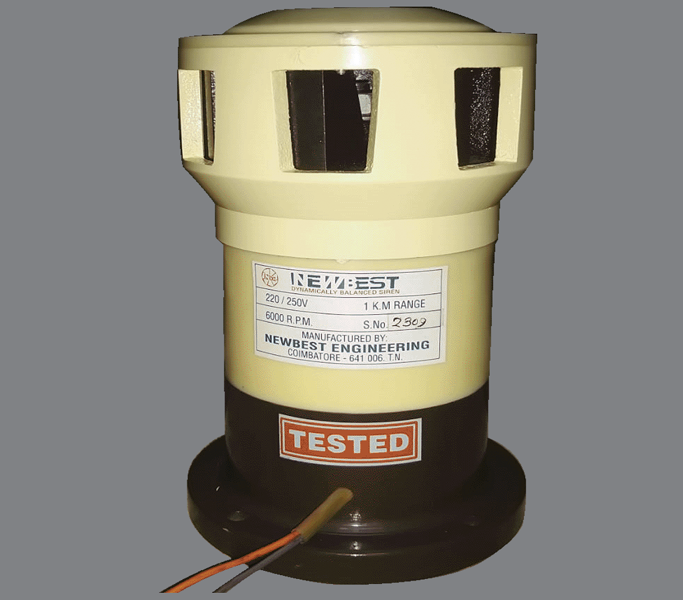

VERTICAL SINGLE MOUNTING SINGLE PHASE 220 / 250 V 6000 RPM 50 CYCLES AC
| AUDIBLE RANGE IN KMS | H.P | MODEL |
|---|---|---|
0.50 | 1/20 | VSM – 50 |
1.00 | 1/10 | VSM – 100 |
2.00 | 1/4 | VSM – 200 |

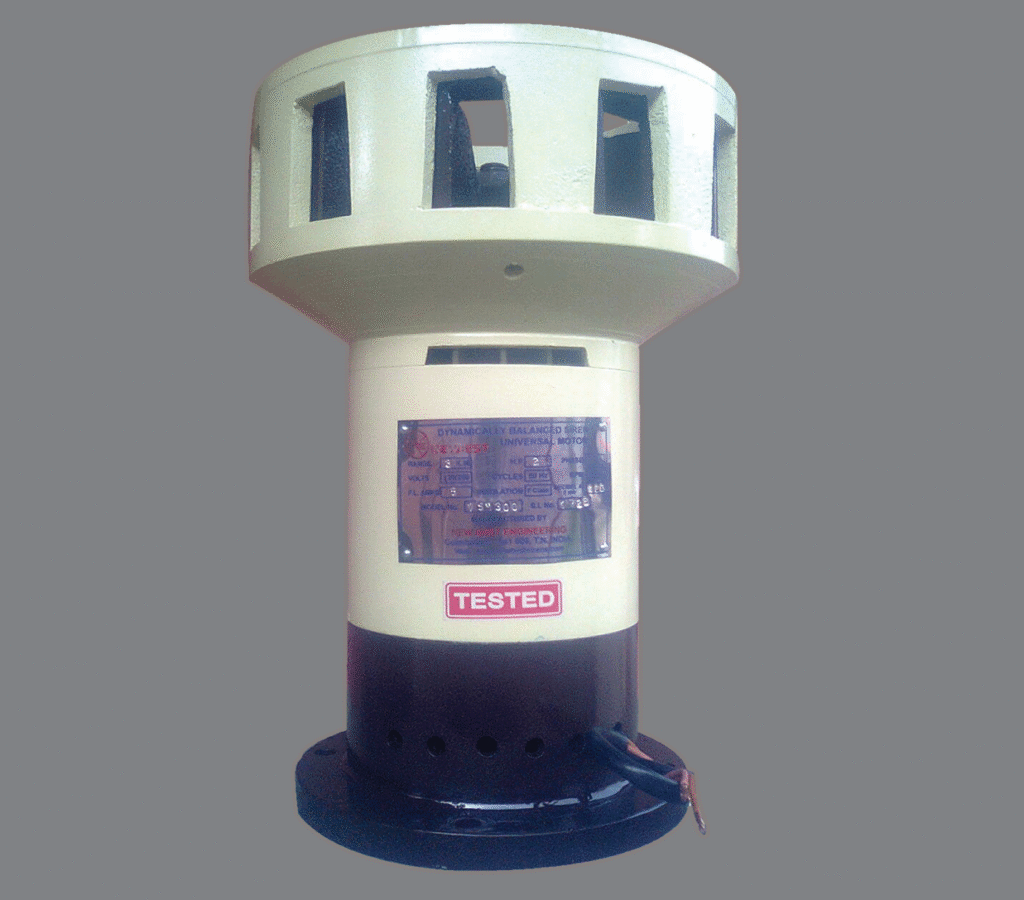

VERTICAL SINGLE MOUNTING SINGLE PHASE 220 / 250 V 6000 RPM 50 CYCLES AC
| AUDIBLE RANGE IN KMS | H.P | MODEL |
|---|---|---|
3.00 | 1/2 | VSM – 300 |
5.00 | 2 | VSM – 500 |
